Global PipeLine Solutions (GPLS)
The
specialist for corrosion resistant and heat resistant stainless steels, duplex,
nickel alloys and titanium
Company Delivery programme:
Flanges and forgings Outside diameter: from 0,5mm till 914mm
Thickness: form 0,8mm till 50mm
Fittings Outside diameter: 1/8'' till 36''
Thickness: SCH5S till SCH XXS
Welded pipes and tubes Length: till
11800mm

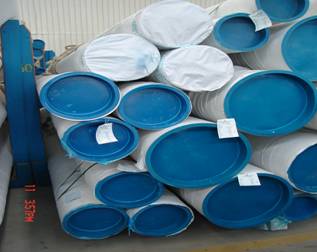

Super size seamless pipes (above 24'', big
size, heavy wall)
Seamless pipes and tubes Seamless heat exchanger tubes
Seamless U-tubes / Seamless U-bended
heat exchanger tubes
Stainless Steels Seamless tubing (imperial and metric) (BWG-S /
SWG-S)
Smls pipes of 16’’ x 28,5 min. wall
with 3.2 inspection by DNV Marine
Seamless pipes of

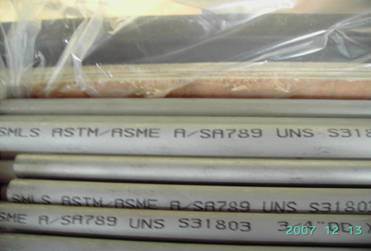

2’’ in heat resistant stainless steel 310 Seamless
heat exchanger tubes in duplex S31803
in different fixed
lengths (ASTM/ASME A/SA789)
Qualities:
ASTM
/ UNS: 304, 304L, 316, 316L, 321, 316Ti, 304H, 321H, 316H, 347, 347H, 317,
317L, 310(S), 309(S), 314,
316LMo, 410, 446, duplex S31803 /
F51, superduplex S32750 and S32760 / F53 / F55, 904L, 6Mo / S31254 / F44
/ 254 SMO
DIN
/EN: 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4948, 1.4878,
1.4919, 1.4550, 1.4449, 1.4438,
1.4828,
1.4833, 1.4841, 1.4435, 1.4436, 1.4006, 1.4749, 1.4462, 1.4410, 1.4501, 1.4539,
1.4547, 1.4529
Nickel
200 (UNS N02200), monel 400 (N04400), inconel 600 (N06600), inconel 625
(N06625), incoloy 800 (N08800),
incoloy
825 (N08825), hastelloy C276, hastelloy C22, alloy 20 (N08020), alloy 28
(N08028), titanium grade 1,
titanium
grade 2, titanium grade 5, curponickel and zirconium, tantalum

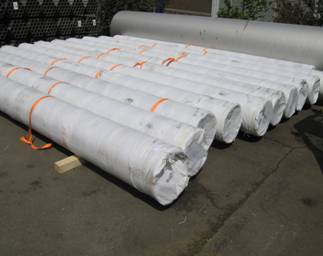

Seamless pipes in 316L of 8’’, 10’’ and
12’’SCH STD Smls heat exchanger tubes with max.

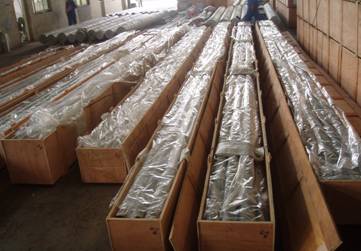

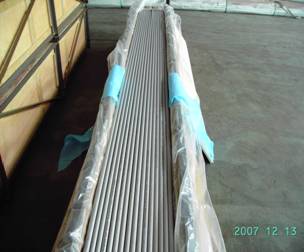

length of 16,8m Seamless heat exchanger
tubes in 304H

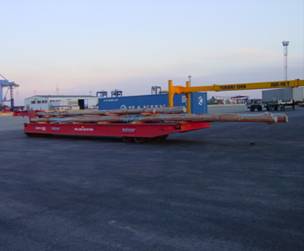

with special sea freight
transport
Norms:
DIN
EN ISO 1127: Stainless steel tubes -
Dimensions, tolerances and conventional masses per unit length
D4/T3:
tolerance outside diameter: +/- 0,5%, tolerance thickness: +/- 10,0%
D3/T3:
tolerance outside diameter: +/- 0,75%, tolerance thickness: +/- 10,0%
D2/T2:
tolerance outside diameter: +/- 1,0%, tolerance thickness: +/- 12,5%
EN
10216-5: Seamless steel
tubes for pressure purposes - Technical delivery conditions - Part 7: Stainless
steel
tubes
DIN
17456: Seamless circular
stainless steel tubes with general quality requirements -Technical delivery
conditions
Nahtlose kreisförmige Rohre aus
nichtrostenden Stählen für allgemeine Anforderungen –
Technische Lieferbedingungen
DIN 17458: Seamless circular tubes of austenitic steels with
special quality requirements -Technical delivery
conditions
Nahtlose kreisförmige Rohre aus
nichtrostenden Stählen für besondere Anforderungen –
Technische Lieferbedingungen
DIN 2462-1: Seamless stainless steel tubes: dimensions and masses
per unit length
Nahtlose Rohre aus nichtrostenden Stählen:
Mäße längenbezogene Massen
DIN 2391-1: Seamless precision steel tubes - Dimensions
Nahtlose Präzisionsstahlrohre mit
besonderer Maßgenauigkeit; Maße
DIN 2391-2: Seamless precision steel tubes - Technical delivery
conditions
Nahtlose Präzisionsstahlrohre mit
besonderer Maßgenauigkeit; technische Lieferbedingungen
DIN28180: Seamless steel tubes for tubular heat exchangers -
Dimensions and materials
AD-W0
(AD2000-Merkblatt W0): General
principles for materials
AD-W2
(AD2000-Merkblatt W2): Austenitic
and austenitic-ferritic steels
AD-W10
(AD2000-Merkblatt W10): Materials
for low temperatures - Ferrous materials
AD-HP100R
(AD2000-Merkblatt HP100R): Construction
regulations Metal piping

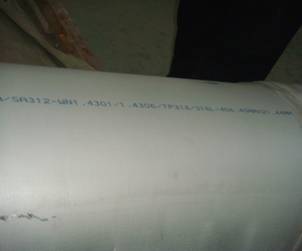

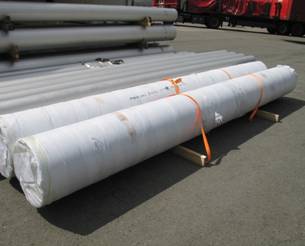

Smls pipe of 16’’ x 21,44mm in
316/316L Smls pipes of 24’’ SCH XS in 304H with

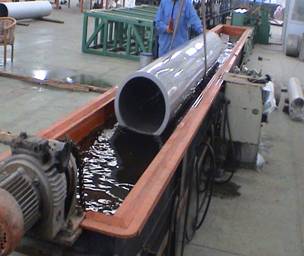

Under water ultrasonic testing of
14’’ pipes
3.2 third party inspection by Lloyd’s
Register
ASTM
A312/A312M: Standard Specification
for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless
Steel
Pipes
ASTM A213/A213M: Standard Specification for Seamless Ferritic and Austenitic
Alloy-Steel Boiler, Superheater,
and
Heat-Exchanger Tubes
ASTM
A269: Standard
Specification for Seamless and Welded Austenitic Stainless Steel Tubing for
General
Service
ASTM
A376/A376M: Standard Specification
for Seamless Austenitic Steel Pipe for High-Temperature Central-
Station
Service
ASTM
A789/A789M: Standard Specification
for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for
General
Service
ASTM
A790/A790M: Standard Specification
for Seamless and Welded Ferritic/Austenitic Stainless Steel
Pipe
ASTM
A268/A268M: Standard Specification
for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing
for
General Service
ASTM
A270: Standard
Specification for Seamless and Welded Austenitic and Ferritic/Austenitic
Stainless
Steel Sanitary Tubing
ASTM
A511: Standard
Specification for Seamless Stainless Steel Mechanical Tubing
ASTM
A632: Standard
Specification for Seamless and Welded Austenitic Stainless Steel Tubing
(Small-Diameter)
for General Service
ASTM
A999/A999M: Standard Specification
for General Requirements for Alloy and Stainless Steel Pipe
ASTM A1016/A1016M: Standard Specification for General Requirements for Ferritic Alloy
Steel, Austenitic Alloy
Steel,
and Stainless Steel Tubes
ASTM
A530/A530M: Standard Specification
for General Requirements for Specialized Carbon and Alloy Steel Pipe
ASTM
A450/A450M: Standard Specification
for General Requirements for Carbon and Low Alloy Steel Tubes
ASTM
B337: Standard
Specification for Seamless and Welded Titanium and Titanium Alloy Pipe
ASTM
B161: Standard
Specification for Nickel Seamless Pipe and Tube
ASTM
B163: Standard
Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger
Tubes
ASTM
B165: Standard
Specification for Nickel-Copper Alloy (UNS N04400)* Seamless Pipe and Tube
ASTM
B167: Standard
Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603,
N06690, N06693, N06025, N06045, and
N06696)* and Nickel-Chromium-Cobalt-
Molybdenum
Alloy (UNS N06617) Seamless
Pipe and Tube
ASTM
B407: Standard
Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
ASTM
B423: Standard
Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloy (UNS N08825
and
N08221)* Seamless Pipe and Tube
ASTM
B444: Standard
Specification for Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06625
and
UNS N06852) and
Nickel-Chromium-Molybdenum-Silicon
Alloy (UNS N06219) Pipe and Tube
ASTM
B535: Standard
Specification for Nickel-Iron-Chromium-Silicon Alloys (UNS N08330 and N08332)
Seamless
Pipe and Tube
ASTM
B622: Standard
Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube
ASTM
B668: Standard
Specification for UNS N08028 Seamless Pipe and Tube
ASTM
B677: Standard
Specification for UNS N08925, UNS N08354, and UNS N08926 Seamless Pipe
and
Tube
ASTM
B690: Standard
Specification for Iron-Nickel-Chromium-Molybdenum Alloys (UNS N08366 and
UNS
N08367) Seamless Pipe and Tube
ASTM
B722: Standard
Specification for Nickel-Chromium-Molybdenum-Cobalt-Tungsten-Iron-Silicon Alloy
(UNS
N06333) Seamless Pipe and Tube
ASTM
B729: Standard
Specification for Seamless UNS N08020, UNS N08026, and UNS N08024
Nickel-Alloy
Pipe and Tube
ASTM
B829: Standard
Specification for General Requirements for Nickel and Nickel Alloys Seamless
Pipe
and Tube
ASTM
B924: Standard
Specification for Seamless and Welded Nickel Alloy Condenser and Heat Exchanger
Tubes
With Integral Fins
SEW
400: Rolled and
Forged Stainless Steels
SEW
470: Heat
Resisting Rolled and Forged Steels
ASME
B36.10M: Welded and seamless
wrought steel pipe
ASME
B36.19M: Stainless steel pipe
NF
A 49-214: Seamless
austenitic high strength high-temperature steel tubes for elevated temperature
NF A 49-317: Seamless austenitic mechanical tubing
BS
3059: Steel
boiler and superheater tubes - Specification for carbon, alloy and austenitic
steel tubes
with
specified elevated
temperature properties
BS
3606: Steel
tubes for heat exchangers
BS
3074: Specification
for nickel and nickel alloys: Seamless tubes
NACE
MR0175: Sulfide Stress
Cracking Resistant Metallic Materials for Oilfield Equipment
NACE
MR0103: Materials Resistant
to Sulfide Stress Cracking in Corrosive Petroleum Refining Environments

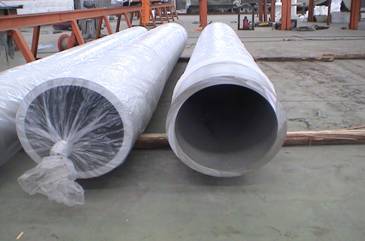

Smls pipes of 18’’ SCH10S in superduplex
S32760 Smls pipes of 6’’

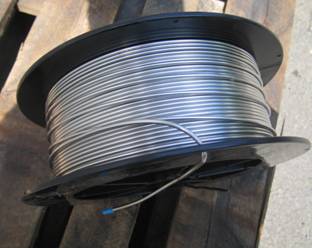

and 10’’ in monel 400 (UNS N04400) Seamless tube on roll / coiled
tubing in 316L
1/4'' O.D. x .076''
