Global PipeLine Solutions (GPLS)
The
specialist for corrosion resistant and heat resistant stainless steels, duplex,
nickel alloys and titanium
Company Delivery programme:
Flanges and forgings Outside diameter: from 0,5mm till 2400mm
Thickness: from 0,8mm till 60mm
Fittings Outside diameter: from 1/8'' till 94''
Thickness: SCH5S till SCH XXS
Welded pipes and tubes Length: till
11800mm

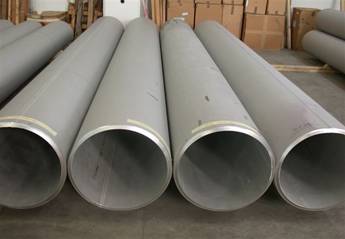

Super
size welded pipes (above 24'', big size, heavy wall)
Seamless pipes and tubes Welded heat exchanger tubes
Welded
U-tubes / Welded U-bended heat exchanger tubes
Stainless Steels Welded tubing (imperial and metric) (BWG-S /
SWG-S)
EFW, ERW, DSAW, TIG, PLASMA, SMAW
Integral finned tubes Welded WX pipe ASTM A312 24'' SCH STD in 321H
with intergranular corrosion
test (ASTM A262 E)
Internal polishing and grain size test (ASTM
E112)

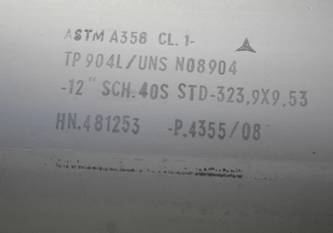

Welded pipes ASTM
A358 class 1 in 904Lwith 100% X-ray Welded pipes DIN17457 TC2 / EN10217-7
TC2
of the weld as per norm and with special
WPS/PQR DIN EN ISO1127 D3/T3 of 88,9x2 and
812,8 x5mm in 1.4404
requirements as per client’s
specification
Qualities:
ASTM
/ UNS: 304, 304L, 316, 316L, 321, 316Ti, 304H, 321H, 316H, 347, 347H, 317,
317L, 310(S), 309(S), 314,
316LMo, 410, 446, duplex S31803 /
F51, superduplex S32750 and S32760 / F53 / F55, 904L, 6Mo / S31254 / F44
/ 254SMO
DIN
/EN: 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4948, 1.4878,
1.4919, 1.4550, 1.4449, 1.4438,
1.4828,
1.4833, 1.4841, 1.4435, 1.4436, 1.4006, 1.4749, 1.4462, 1.4410, 1.4501, 1.4539,
1.4547, 1.4529
Nickel
200 (UNS N02200), monel 400 (N04400), inconel 600 (N06600), inconel 625
(N06625), incoloy 800 (N08800),
incoloy
825 (N08825), hastelloy C276, hastelloy C22, alloy 20 (N08020), alloy 28
(N08028), titanium grade 1,
titanium
grade 2, titanium grade 5, curponickel and zirconium, tantalum
Welded WX pipes ASTM A312 of 14'' SCH STD in
310S Pipes EN10217-7 TC1 DIN EN ISO1127 D3/T3
produced in 7 days
and than of 21,3x1,6 till 609,6 x 4 in 1.4571
(316Ti)
shipped with air freight to Dubai
Tube
in incoloy
Norms:
DIN
EN ISO 1127: Stainless steel tubes -
Dimensions, tolerances and conventional masses per unit length
D4/T3:
tolerance outside diameter: +/- 0,5%, tolerance thickness: +/- 10,0%
D3/T3:
tolerance outside diameter: +/- 0,75%, tolerance thickness: +/- 10,0%
D2/T2:
tolerance outside diameter: +/- 1,0%, tolerance thickness: +/- 12,5%
EN
10217-7: Welded steel tubes
for pressure purposes - Technical delivery conditions - Part 7: Stainless steel
tubes
EN 10296-2: Welded circular steel tubes for mechanical and general
engineering purposes - Technical delivery
conditions - Part 2: Stainless steel
DIN
17455: Welded circular
stainless steel tubes with general quality requirements -Technical delivery
conditions
Geschweißte kreisförmige Rohre aus
nichtrostenden Stählen für allgemeine Anforderungen –
Technische Lieferbedingungen
DIN
17457: Welded circular
tubes of austenitic steels with special quality requirements -Technical
delivery
conditions
Geschweißte
kreisförmige Rohre aus nichtrostenden Stählen für besondere Anforderungen –
Technische Lieferbedingungen
DIN
11850: Tubes for the food,
chemical and pharmaceutical industry - Stainless steel tubes - Dimensions,
materials
Rohre
für Lebensmittel, Chemie und Pharmazie - Rohre aus nichtrostenden Stählen -
Mäße,
Werkstoffe
DIN
2463-1: Welded austenitic
stainless steel tubes: dimensions and masses per unit length
Geschweißte Rohre aus austenitischen
nichtrostenden Stählen: Mäße längenbezogene Massen
DIN
2393-1: Welded precision
steel tubes – Dimensions
Geschweißte
Präzisionsstahlrohre mit besonderer Maßgenauigkeit; Maße
DIN 2393-2: Welded precision steel tubes - Technical delivery
conditions
Geschweißte Präzisionsstahlrohre mit
besonderer Maßgenauigkeit; technische
Lieferbedingungen
AD-W0
(AD2000-Merkblatt W0): General
principles for materials
AD-W2
(AD2000-Merkblatt W2): Austenitic
and austenitic-ferritic steels
AD-W10
(AD2000-Merkblatt W10): Materials
for low temperatures - Ferrous materials
AD-HP100R
(AD2000-Merkblatt HP100R): Construction
regulations Metal piping
ASTM
A312/A312M: Standard Specification
for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless
Steel
Pipes
ASTM
A358/A358M: Standard Specification
for Electric-Fusion-Welded Austenitic Chromium-Nickel Stainless Steel
Pipe
for High-Temperature
Service
and General Applications
ASTM A249/A249M: Standard Specification for Welded Austenitic Steel Boiler,
Superheater, Heat-Exchanger, and
Condenser
Tubes
ASTM
A409/A409M: Standard Specification
for Welded Large Diameter Austenitic Steel Pipe for Corrosive or
High-Temperature
Service
ASTM
A554: Standard
Specification for Welded Stainless Steel Mechanical Tubing
ASTM
A668/A688M: Standard Specification
for Welded Austenitic Stainless Steel Feedwater Heater Tubes
ASTM
A376/A376M: Standard Specification
for Seamless Austenitic Steel Pipe for High-Temperature Central-
Station
Service
ASTM
A789/A789M: Standard Specification
for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for
General
Service
ASTM
A790/A790M: Standard Specification
for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
ASTM
A268/A268M: Standard Specification
for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing
for
General Service
ASTM
A269: Standard
Specification for Seamless and Welded Austenitic Stainless Steel Tubing for
General
Service
ASTM
A270: Standard
Specification for Seamless and Welded Austenitic and Ferritic/Austenitic
Stainless
Steel Sanitary Tubing
ASTM
A632: Standard
Specification for Seamless and Welded Austenitic Stainless Steel Tubing
(Small-Diameter) for General Service
ASTM
A813/A813M: Standard Specification
for Single- or Double-Welded Austenitic Stainless Steel Pipe
ASTM
A814/A814M: Standard Specification
for Cold-Worked Welded Austenitic Stainless Steel Pipe
ASTM
A999/A999M: Standard Specification
for General Requirements for Alloy and Stainless Steel Pipe
ASTM
A1016/A1016M: Standard Specification for
General Requirements for Ferritic Alloy Steel, Austenitic Alloy
Steel,
and Stainless Steel Tubes
ASTM
A530/A530M: Standard Specification
for General Requirements for Specialized Carbon and Alloy Steel Pipe
ASTM
A450/A450M: Standard Specification
for General Requirements for Carbon and Low Alloy Steel Tubes
Welded pipes DIN 17457 TC1 in duplex
1.4462 Welded pipes EN10217-7of 60,3 x 2
in 1.4435 (316LMo)
Tube
in 254SMO
ASTM
B337: Standard
Specification for Seamless and Welded Titanium and Titanium Alloy Pipe
ASTM
B464: Standard
Specification for Welded UNS N08020, N08024, and N08026 Alloy Pipe
ASTM
B468: Standard
Specification for Welded UNS N08020, N08024, and N08026 Alloy Tubes
ASTM
B474: Standard
Specification for Electric Fusion Welded Nickel and Nickel Alloy Pipe
ASTM
B514: Standard Specification
for Welded Nickel-Iron-Chromium Alloy Pipe
ASTM
B515: Standard
Specification for Welded UNS N08120, UNS N08800, UNS N08810, and
UNS
N08811 Alloy Tubes
ASTM
B516: Standard
Specification for Welded Nickel-Chromium-Iron Alloy (UNS N06600, UNS N06603,
UNS
N06025, and UNS N06045 Tubes
ASTM
B517: Standard
Specification for Welded Nickel-Chromium-Iron-Alloy (UNS N06600, UNS
N06603,
UNS N06025 and UNS N06045) Pipe
ASTM
B546: Standard
Specification for Electric Fusion-Welded Ni-Cr-Co-Mo Alloy (UNS N06617),
Ni-Fe-Cr-Si
Alloys (UNS N08330 and
UNS
N08332), Ni-Cr-Fe-Al Alloy (UNS N06603), Ni-Cr-Fe Alloy (UNS N06025), and
Ni-Cr-Fe-Si
Alloy (UNS N06045) Pipe
ASTM B619: Standard Specification for Welded Nickel and
Nickel-Cobalt Alloy Pipe
ASTM
B626: Standard
Specification for Welded Nickel and Nickel-Cobalt Alloy Tube
ASTM B673: Standard
Specification for UNS N08925, UNS N08354, and UNS N08926 Welded Pipe
ASTM
B674: Standard
Specification for UNS N08925, UNS N08354, and UNS N08926 Welded Tube
ASTM
B675: Standard
Specification for UNS N08367 Welded Pipe
ASTM
B676: Standard
Specification for UNS N08367 Welded Tube
ASTM
B704: Standard
Specification for Welded UNS N06625, UNS N06219 and UNS N08825 Alloy
Tubes
ASTM
B705: Standard
Specification for Nickel-Alloy (UNS N06625, N06219 and N08825) Welded Pipe
ASTM
B723: Standard
Specification for Nickel-Chromium-Molybdenum-Cobalt-Tungsten-Iron-Silicon Alloy
(UNS
N06333) Welded Pipe
ASTM
B725: Standard
Specification for Welded Nickel (UNS N02200/UNS N02201) and Nickel Copper
Alloy
(UNS N04400) Pipe
ASTM
B726: Standard
Specification for Nickel-Chromium-Molybdenum-Cobalt-Tungsten-Iron-Silicon Alloy
(UNS
N06333) Welded Tube
ASTM
B730: Standard
Specification for Welded Nickel (UNS N02200/UNS N02201) and Nickel Copper
Alloy
(UNS N04400) Tube
ASTM
B751: Standard
Specification for General Requirements for Nickel and Nickel Alloy Welded Tube
ASTM
B775: Standard
Specification for General Requirements for Nickel and Nickel Alloy Welded Pipe
ASTM
B804: Standard
Specification for UNS N08367 and UNS N08926 Welded Pipe
ASTM B924: Standard Specification for Seamless and Welded
Nickel Alloy Condenser and Heat Exchanger
Tubes
With Integral Fins
SEW
400: Rolled and
Forged Stainless Steels
SEW
470: Heat
Resisting Rolled and Forged Steels
ASME
B36.10M: Welded and seamless
wrought steel pipe
ASME
B36.19M: Stainless steel pipe
NACE
MR0175: Sulfide Stress
Cracking Resistant Metallic Materials for Oilfield Equipment
NACE
MR0103: Materials Resistant
to Sulfide Stress Cracking in Corrosive Petroleum Refining Environments
Welded heat
exchanger pipes ASTM A249 Welded
sanitary pipe DIN11850 BC154,0 x 2,0 in 1.4404
25,4
x 1,24 in 316/316L for export
to Argentina
